Different Kinds of Drainback Solar Water Heating Systems

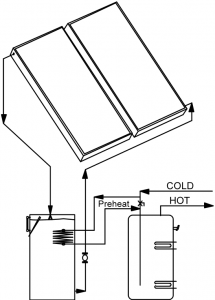

Fig. 1 – Type 1 Drainback System
Most people don’t know that there are different kinds of drainback solar water heating systems. Some look very much like glycol systems with the important difference that they contain no glycol, expansion tanks, check valves, or any other components required for dealing with pressurization. The water drains out of the collectors when the pump stops.
The design we recommend is called the Type 1 drainback system, shown in Figure 1 (click for larger image). The drainback tank is a full size unpressurized solar storage tank. There is no heat exchanger between the collectors and the tank for the highest solar collection efficiency. The heat exchanger is on the load side.
This is called a two tank system since the solar storage is completely separate from the conventional water heater. Type 1 drainback systems are scalable from very small to very large. As the system size get larger, the benefits of non-pressurized drainback become even greater over a pressurized glycol system.
Type 2 and Type 3 drainback systems are single tank systems developed mainly for small residential systems to get away from the problems associated with pressurized glycol. Figures 2 and 3 show these two types, which differ in where the heat exchanger is placed. Type 2 and 3 drainback systems have LOW pressure collector loops (not NO pressure) with a heat exchanger between the collectors and the tank.
Low pressure means they are not pressurized up to the line pressure of potable water. The collector water drains back into a reservoir tank, which is too small to be considered as the solar storage volume. It is better to think of the drainback reservoir as a “module”, or component in the system.

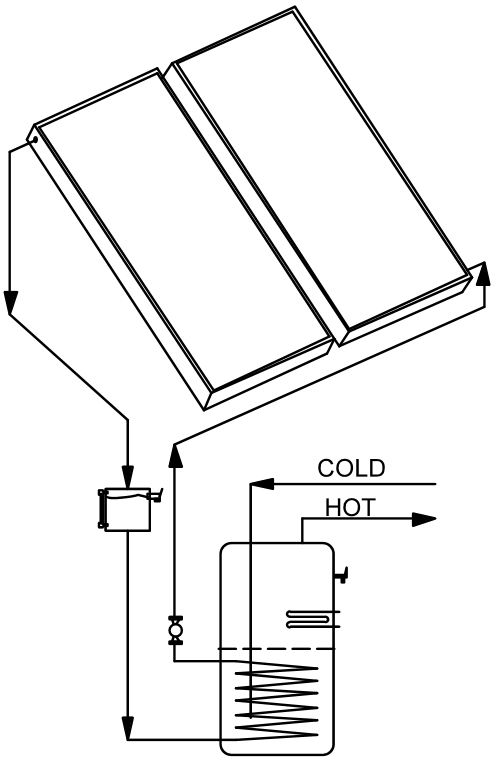

Fig. 2 – Type 2 Drainback System

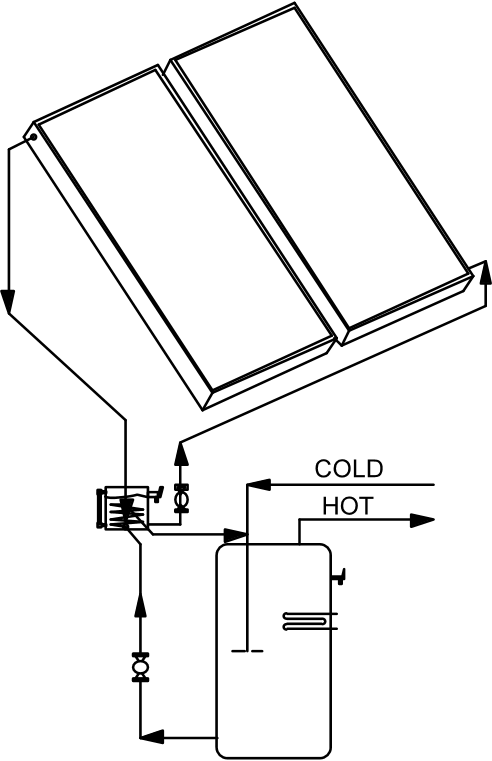

Fig. 3 – Type 3 Drainback System
Type 2 uses a special solar water heater with a heat exchanger built in. Only one pump is needed to run the collector loop. This is a single tank configuration with the solar storage volume and the regular water heater volume in the same tank, typically divided about 50:50. Single tank systems all have the same problems. The solar storage volume is less than it should be, lowering the collector efficiency, and there is always energy mixing where the electric element adds some energy to the solar storage, lowering the solar efficiency. For example, an 80 gallon single tank system will have about 40 gallons of “solar” storage, limiting the collector area to about 60ft2, and 40 gallons of conventional electric heat storage. A two tank system, by contrast, can have a full 80 gallons of solar storage, with a 40-80 gallon conventional water heater.
Also, single tank solar systems don’t work with gas water heaters, because the flame is at the bottom of the tank where the solar storage is supposed to be. The special water heaters used in Type 2 drainback are much more expensive than regular water heaters but don’t last any longer, typically 7-10 years. When one wears out and starts to leak, the replacement can be expensive.
Type 3 drainback systems get around the need for a special water heater by putting the heat exchanger inside the small reservoir tank. The water heater can now be any conventional (energy efficient) electric model. However, Type 3 drainback systems require a second pump to circulate the water to the water heater, and the solar equipment cost goes up slightly. Since the heat exchanger is in a small reservoir, its size is smaller than the Type 2 exchanger, so limitations occur in system size. The cold water dip tube is usually cut off at half height to prevent the solar heated water from going right into the supply line at the bottom of the tank.

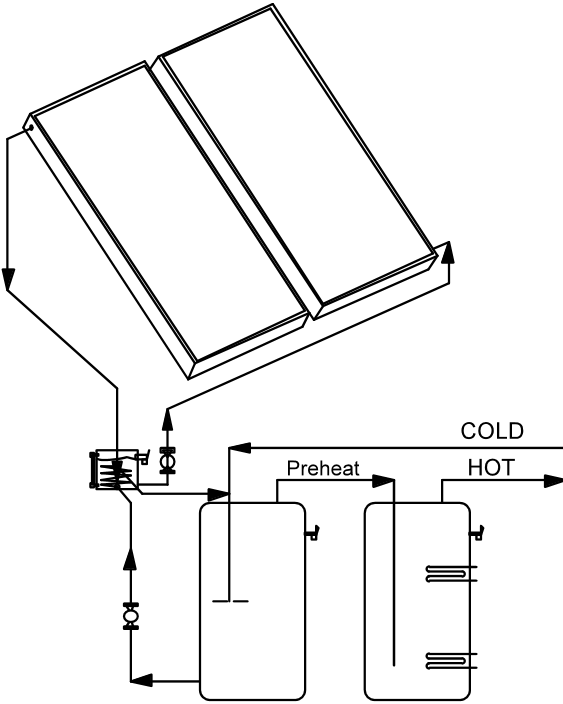

Fig. 4 – Type 4 Two Tank Drainback System
Either Type 2 or Type 3 drainback systems can also be used in two tank systems as shown in Figure 4. In this case, the first tank is a full size solar storage tank which supplies preheated water to a conventional water heater.
Although technically feasible, there is no reason to choose a Type 4 over a Type 1, since they have more components and are less efficient.
To summarize, two tank systems have several advantages over single tank systems. They can be used effectively with any type gas, electric, and instantaneous water heaters. They have separate full solar storage and water heater volumes.
Note that some instantaneous water heaters don’t have controls sophisticated enough to take preheated water and boost it to the final temperature. Be sure to check when choosing an instantaneous water heater.
